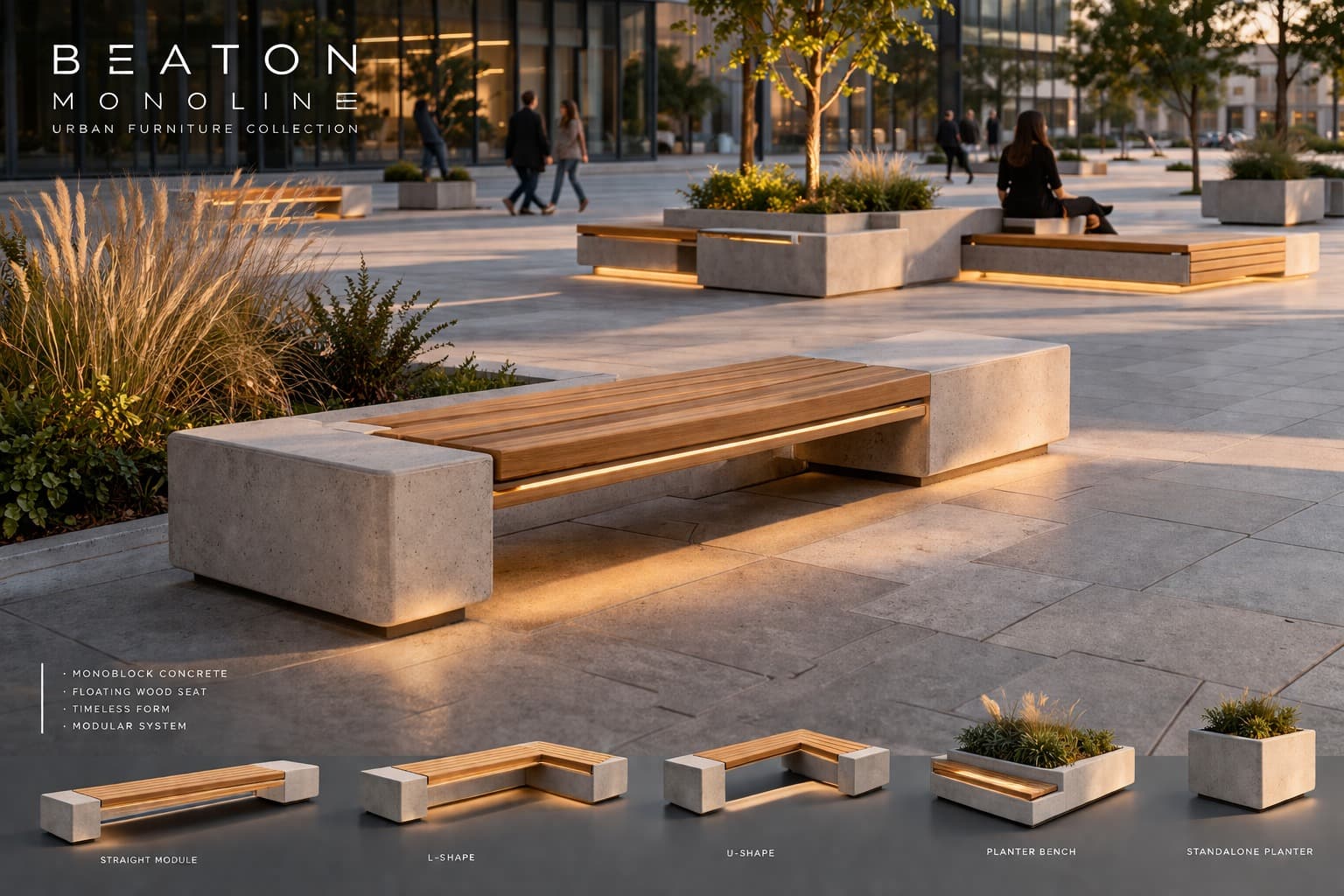

01Modular Bench System
Monoline
Monoblock concrete with floating timber seat. Straight, L-shape, U-shape and planter modules combine into any plaza configuration.
- 011800 × 600 × 450 mm
- 02Precast / UHPC
- 03Iroko or Accoya
Beaton — UK Market 2026
Concrete urban
systems for the
modern public realm.
Modular benches, planters and streetscape systems — engineered in Türkiye, specified by architects across London and the UK.
01 — Manifesto
We design urban furnitureas systems,not objects.
Public realm projects in the UK no longer ask for benches.
They ask for coordinated, modular, climate-resilient streetscape —
specified by architects, engineered for a fifty-year service life.
02 — Systems
Five product families for every kind of public space.
02Flagship System
Planter+Bench
The flagship for UK public realm — integrated seating, greening, spatial control and optional HVM core in a single coordinated element.
- 012000 × 800 × 450 mm
- 02Soil depth 500–600 mm
- 03HVM-ready core
03Streetscape Decluttering
Urban Block
Replaces multiple isolated street elements — bench, cycle rack, lighting base, wayfinding, waste bin — with one coordinated block family.
- 01Modular footprint
- 02Steel inserts
- 03Service channels
04Climate-Resilient Infrastructure
SuDS Planter
Concrete planters re-engineered as small-scale Sustainable Drainage units. Gravel layer, perforated pipe, overflow outlet.
- 01Storage zone integrated
- 02Geotextile separation
- 03Controlled discharge
05Hostile Vehicle Mitigation
HVM-Ready
Reinforced cores and anchorage paths designed for ISO 22343 testing — security functionality embedded inside ordinary public realm furniture.
- 01Reinforced core
- 02Mass + anchor design
- 03Modular barrier line
03 — Showcase
A catalogue of twenty module designs, assembled across five system families.

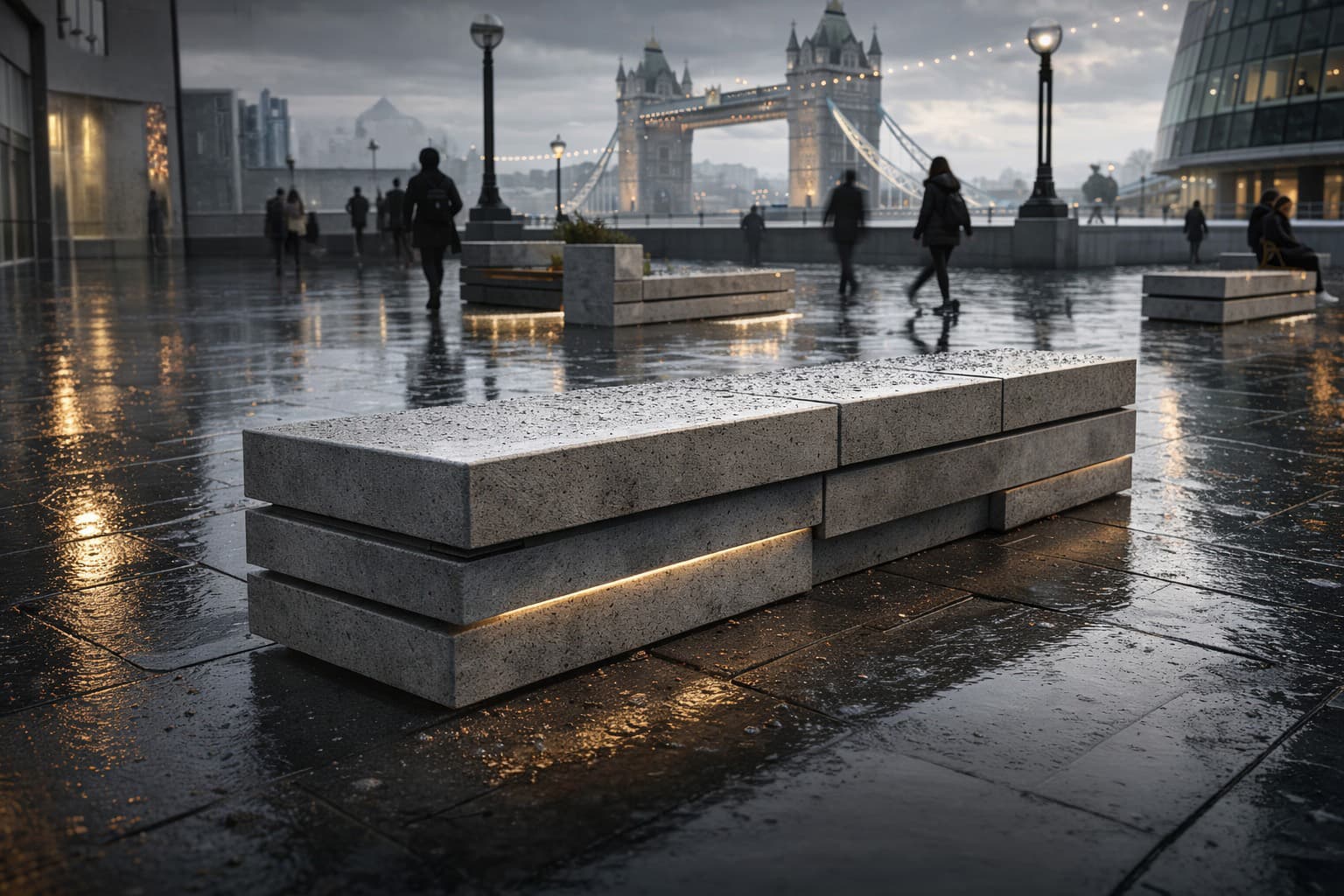

Monoline · Straight Module
1800×600×450
MNL-01

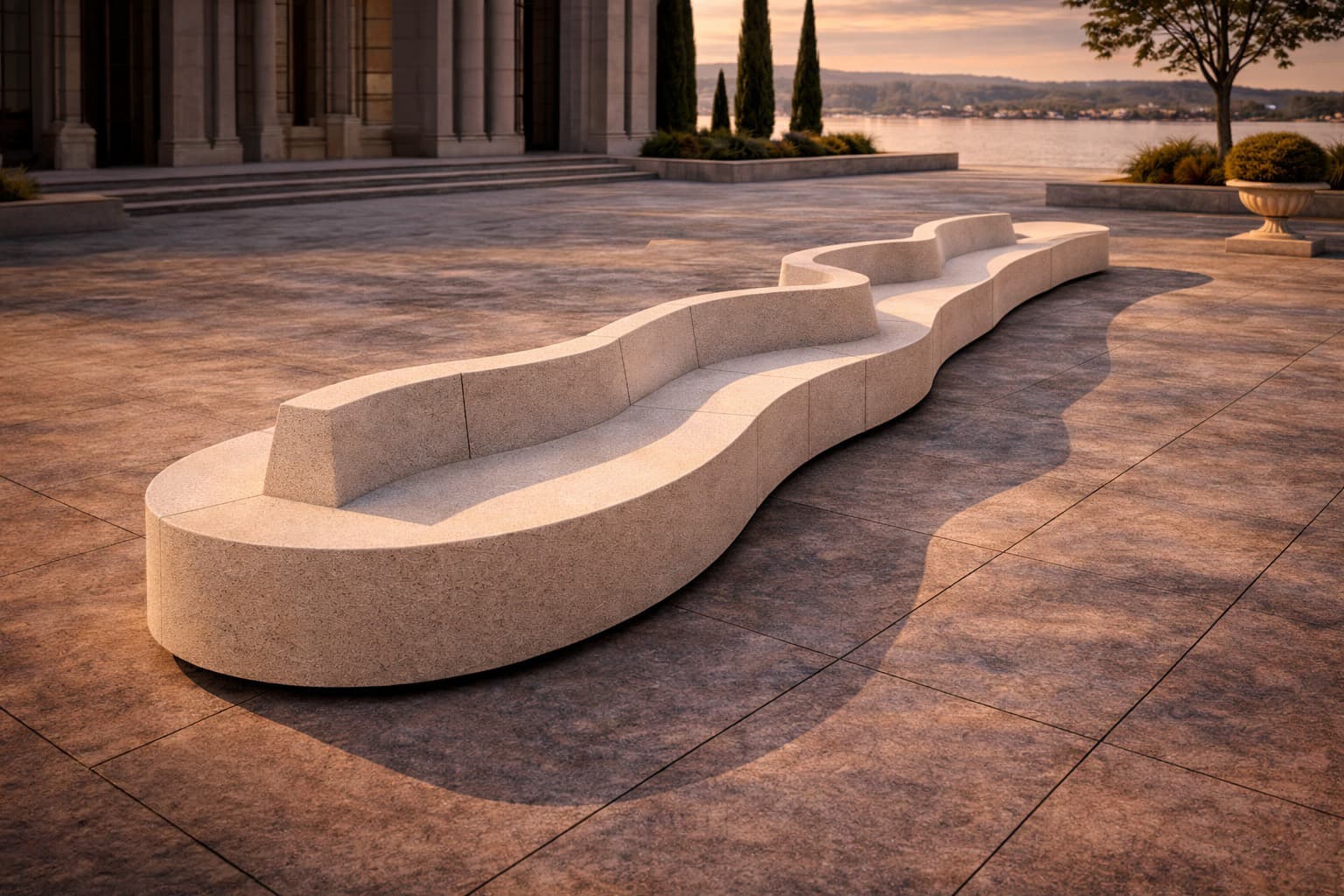

Monoline · L-Shape
Corner module
MNL-02

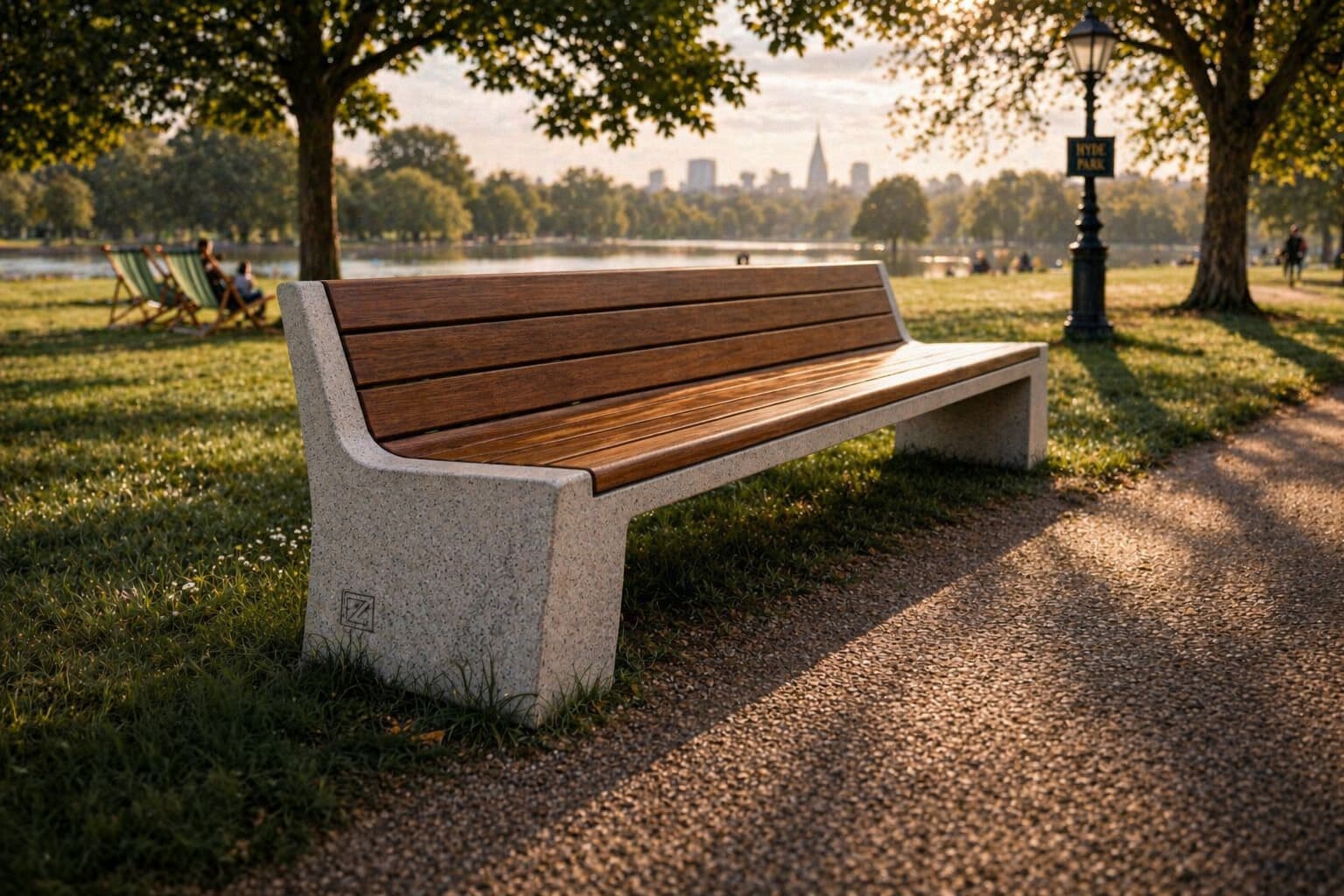

Strata · Layered Bench
Brutalist elegance
STR-01

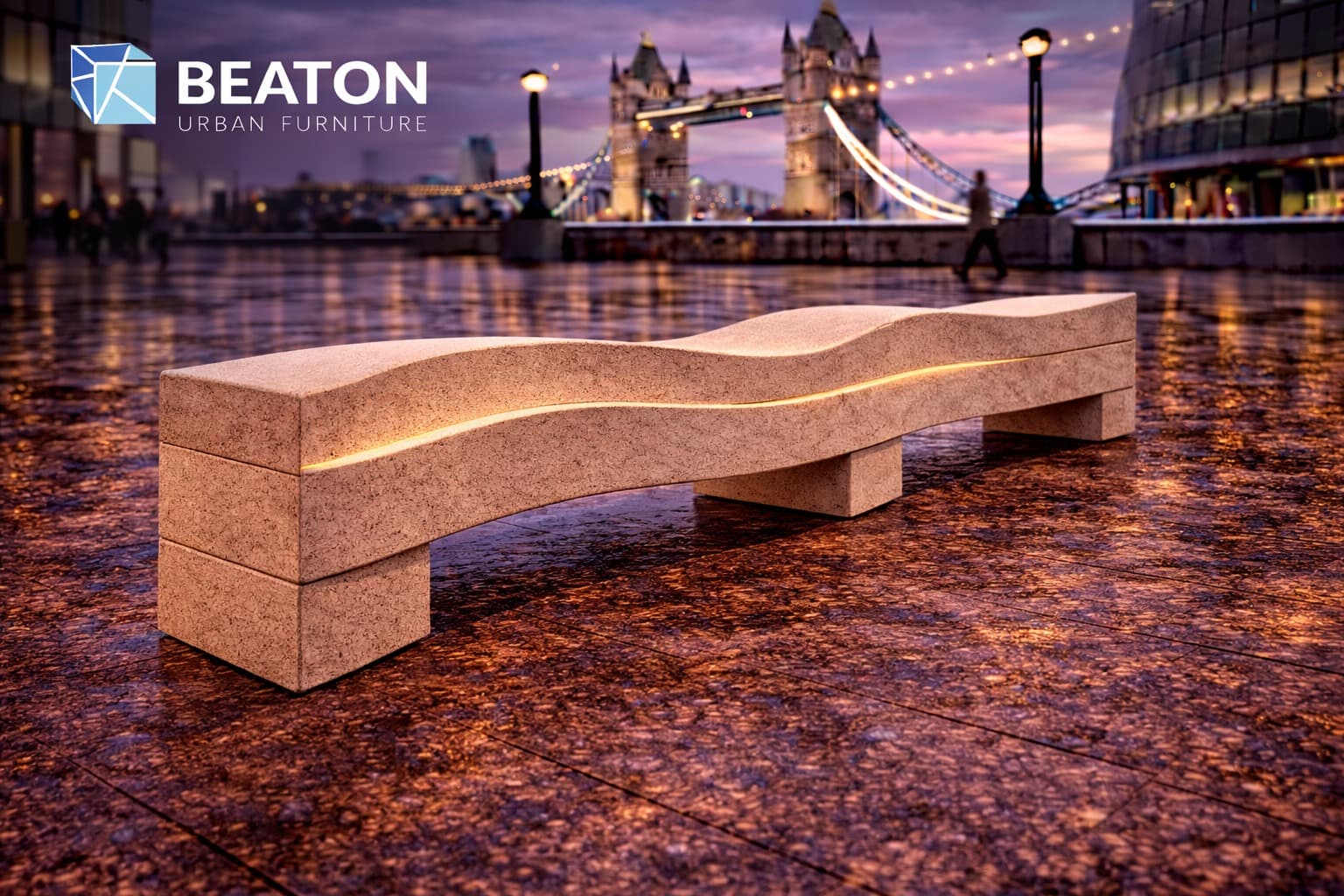

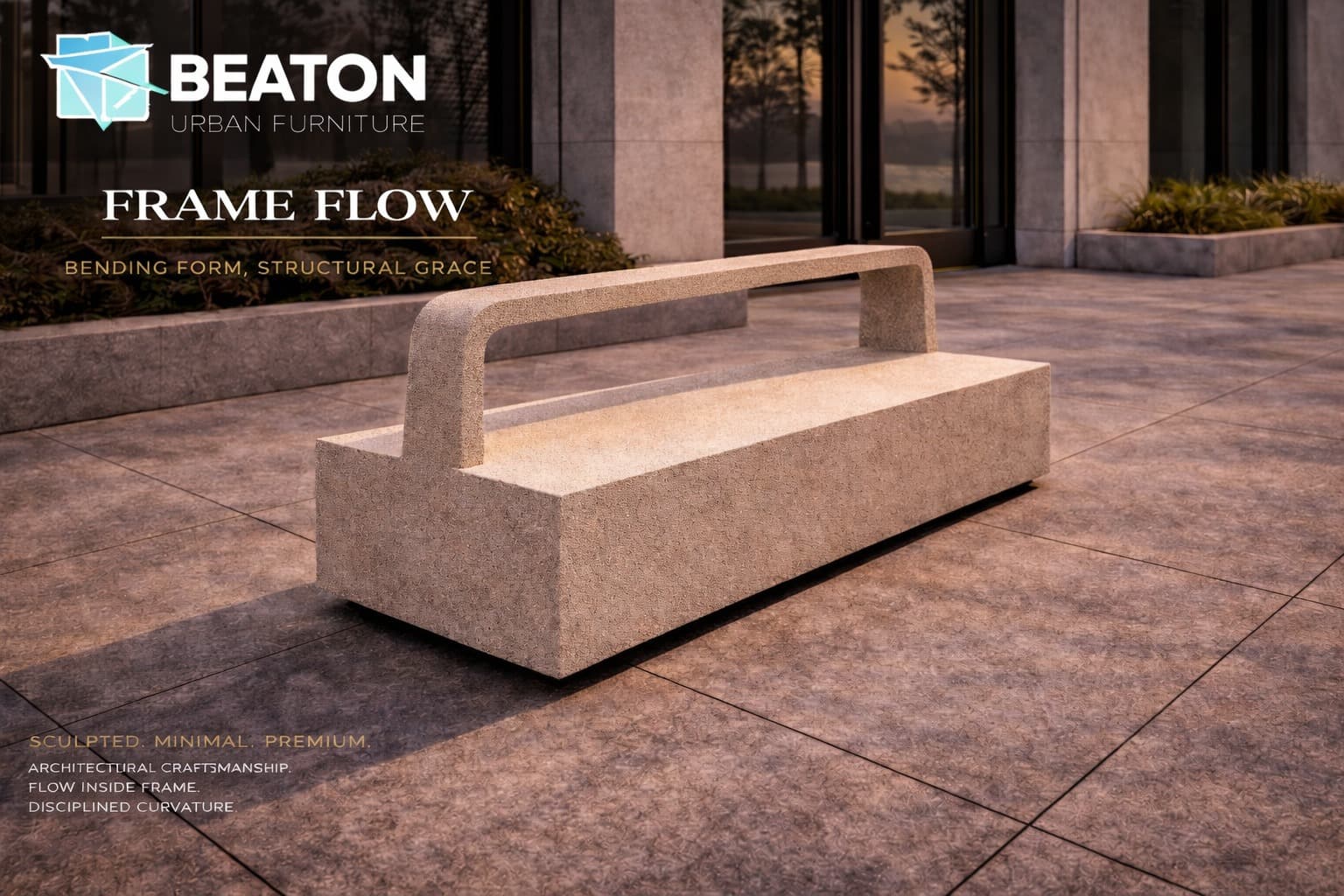

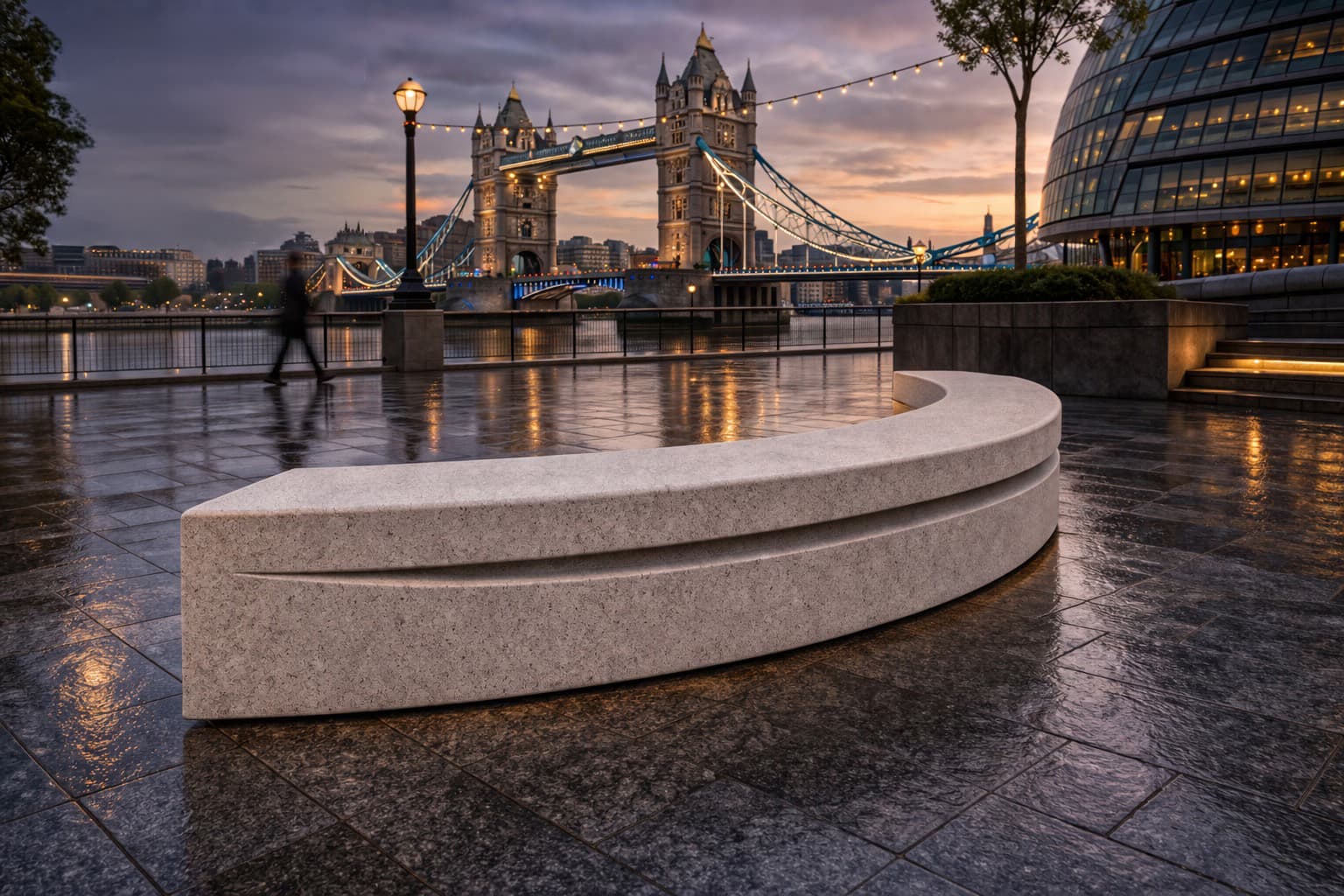

Frame Flow
Sculpted minimal
FRM-01

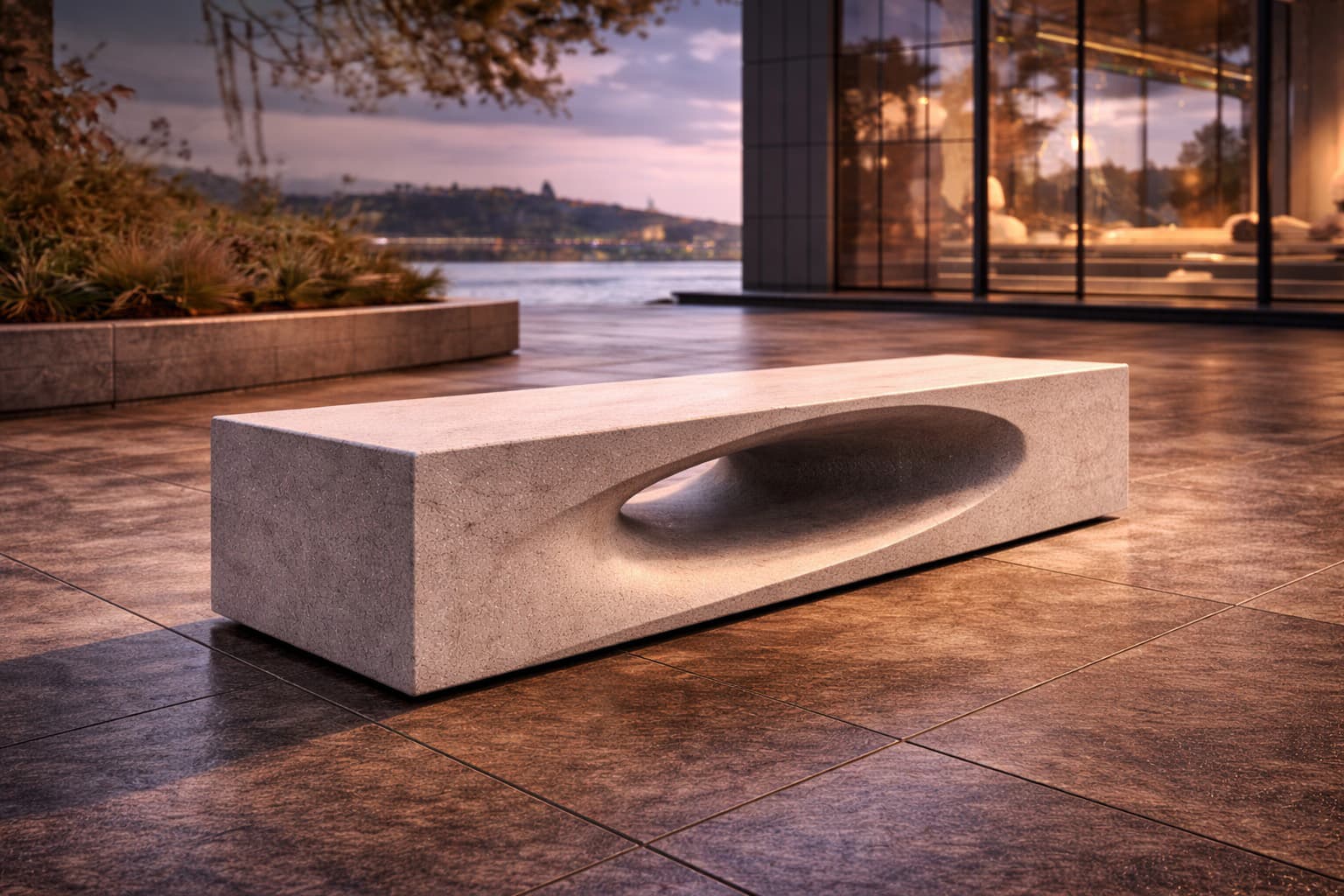

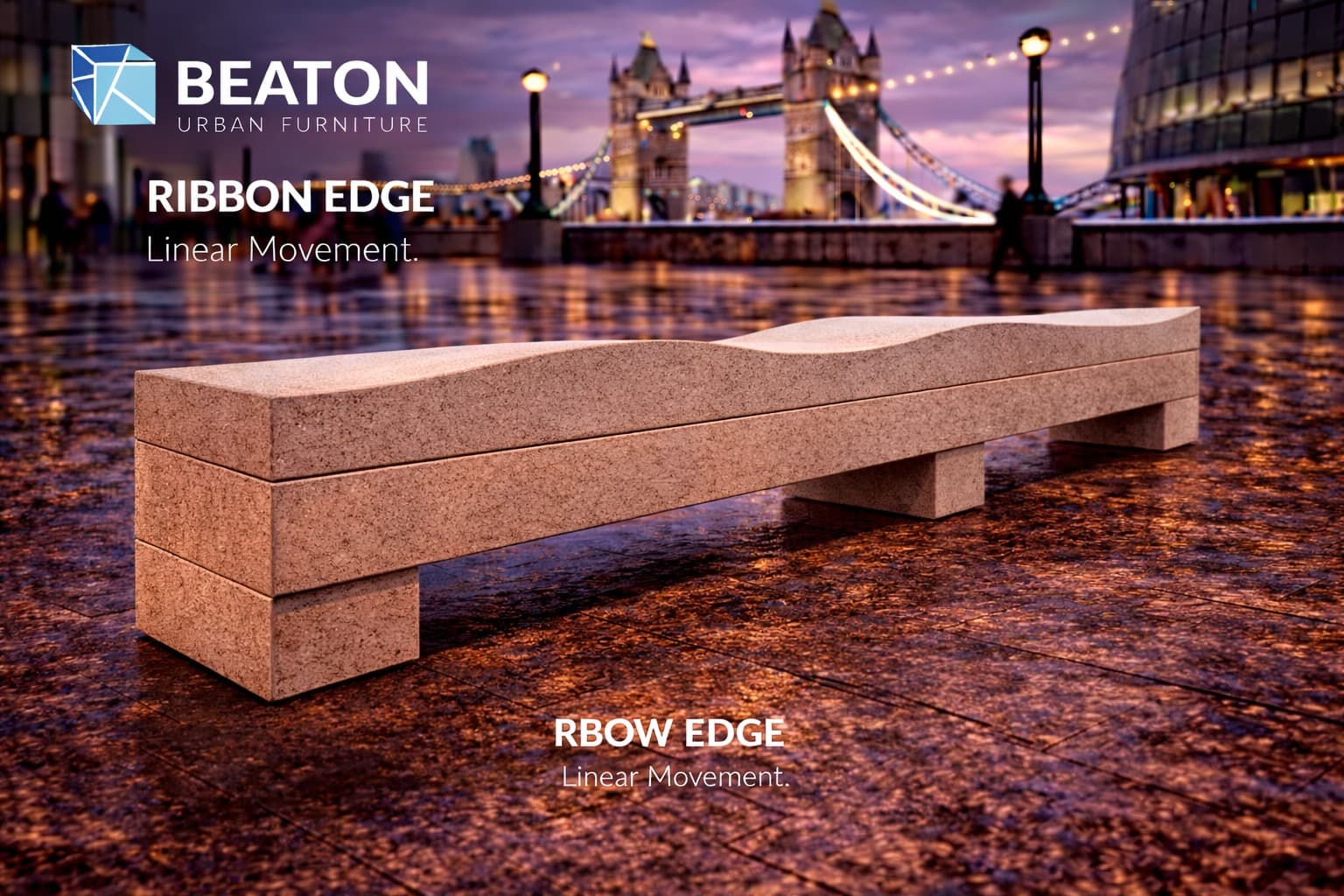

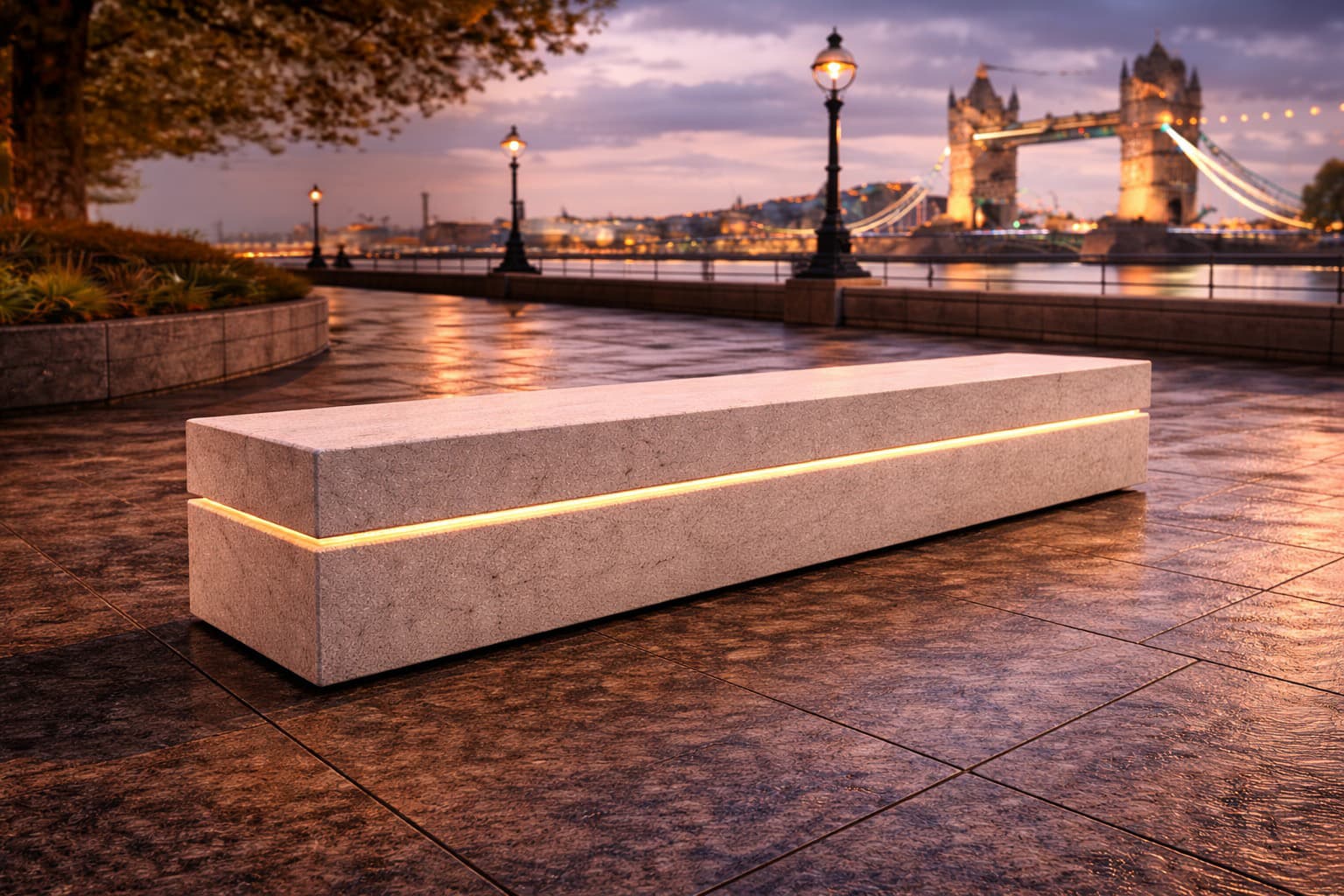

Ribbon Edge
Linear movement
RBN-01

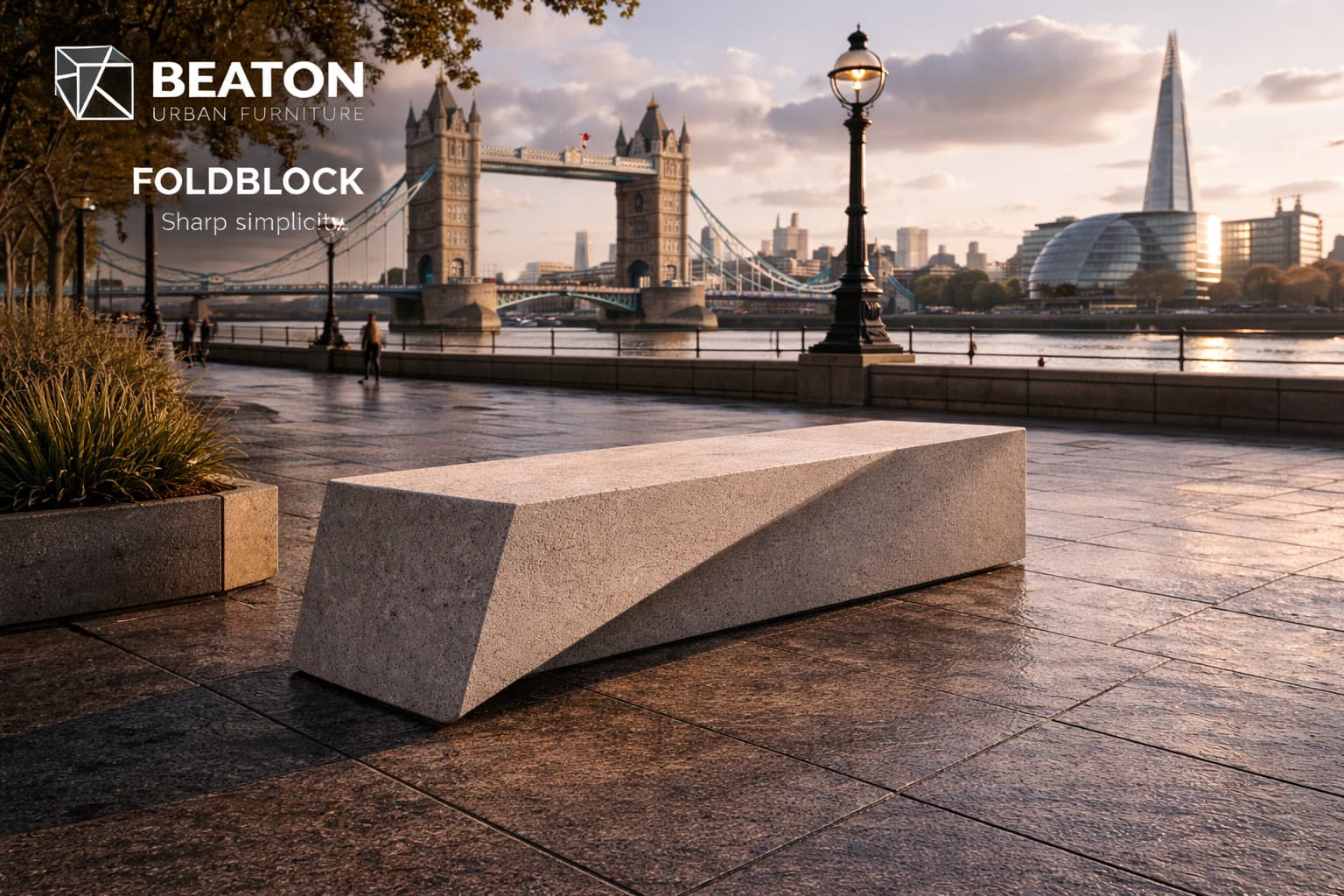

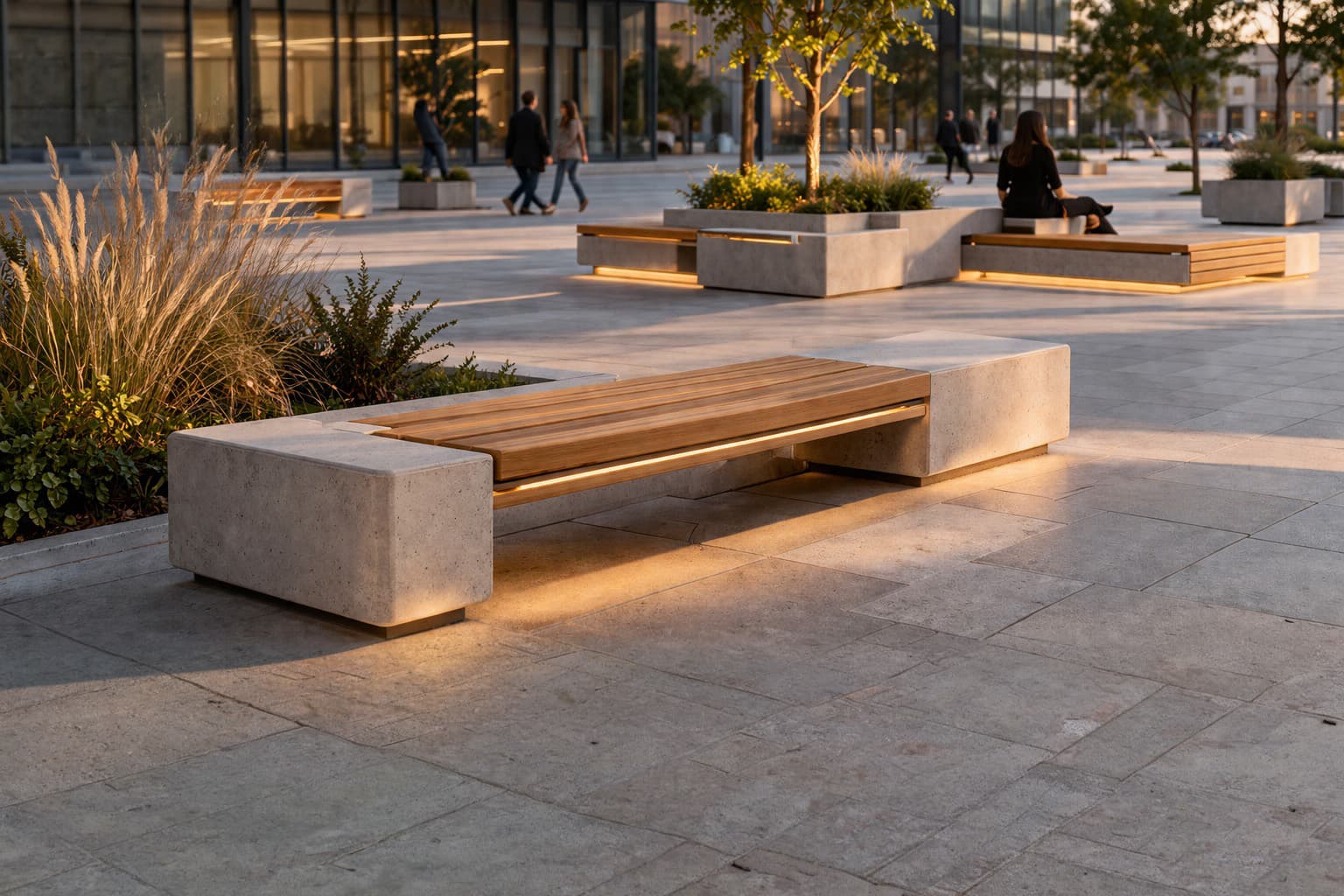

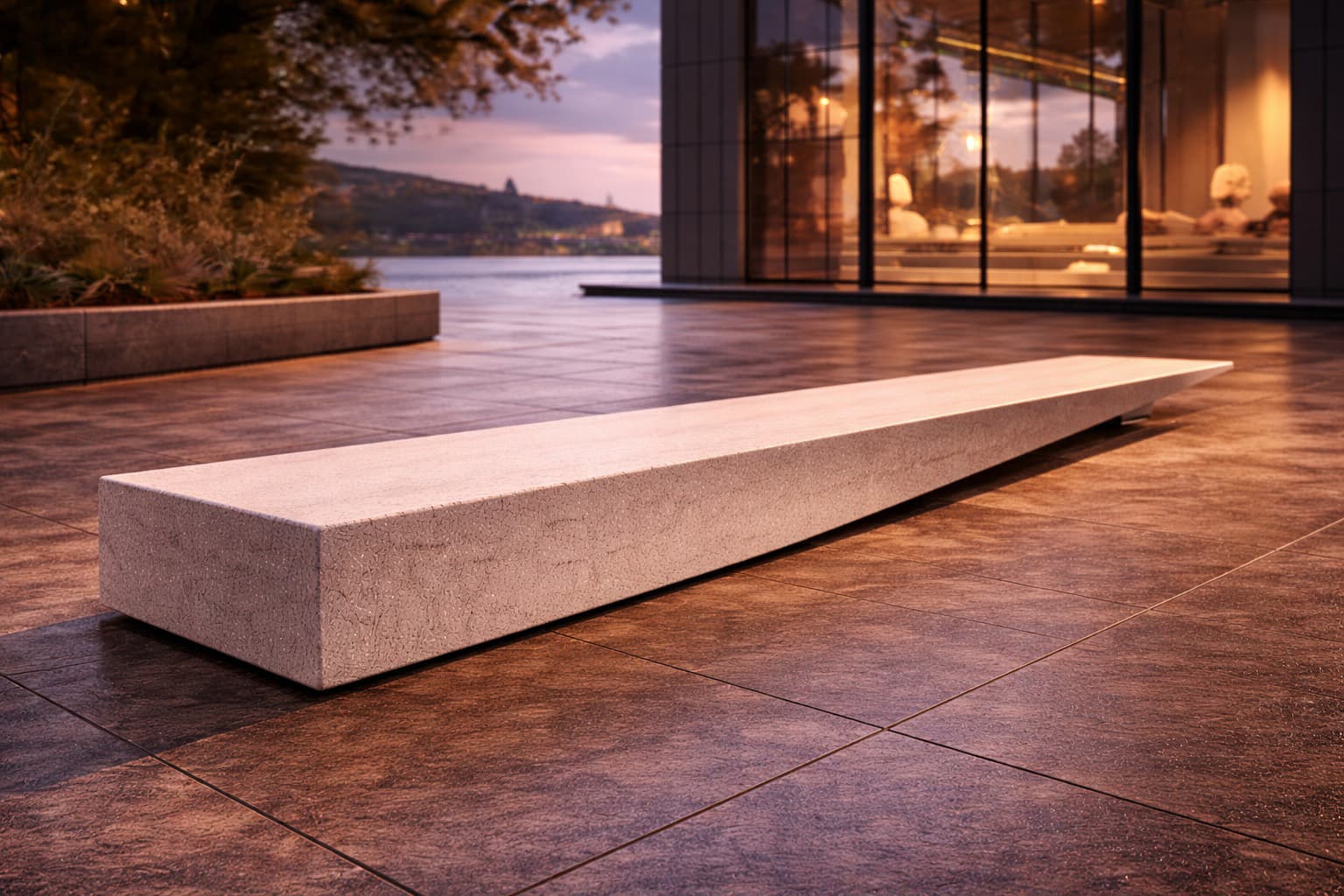

Foldblock
Sharp simplicity
FLD-01

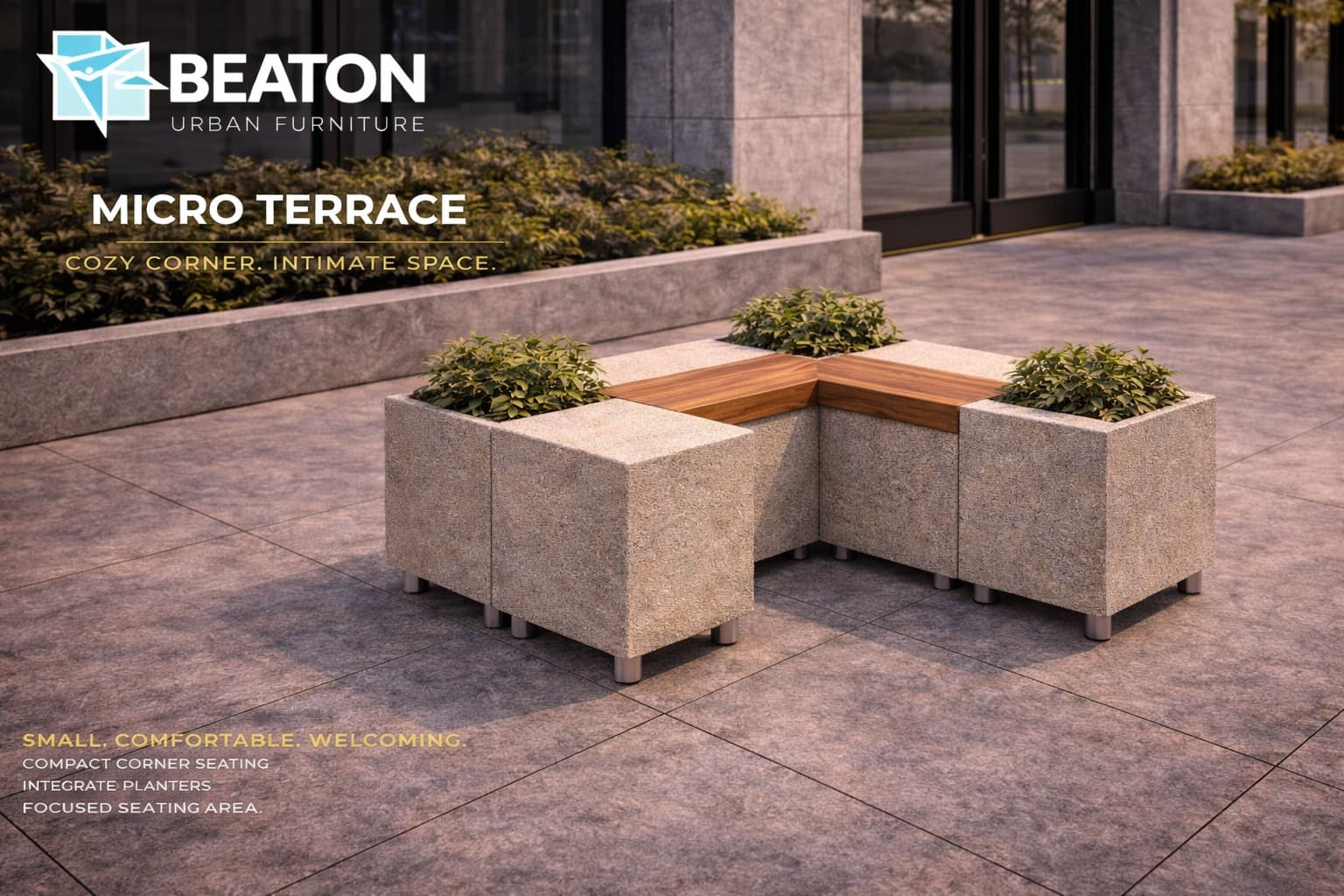

Micro Terrace
Compact corner system
MTR-01
Planter+Bench
Integrated greening
PLB-01

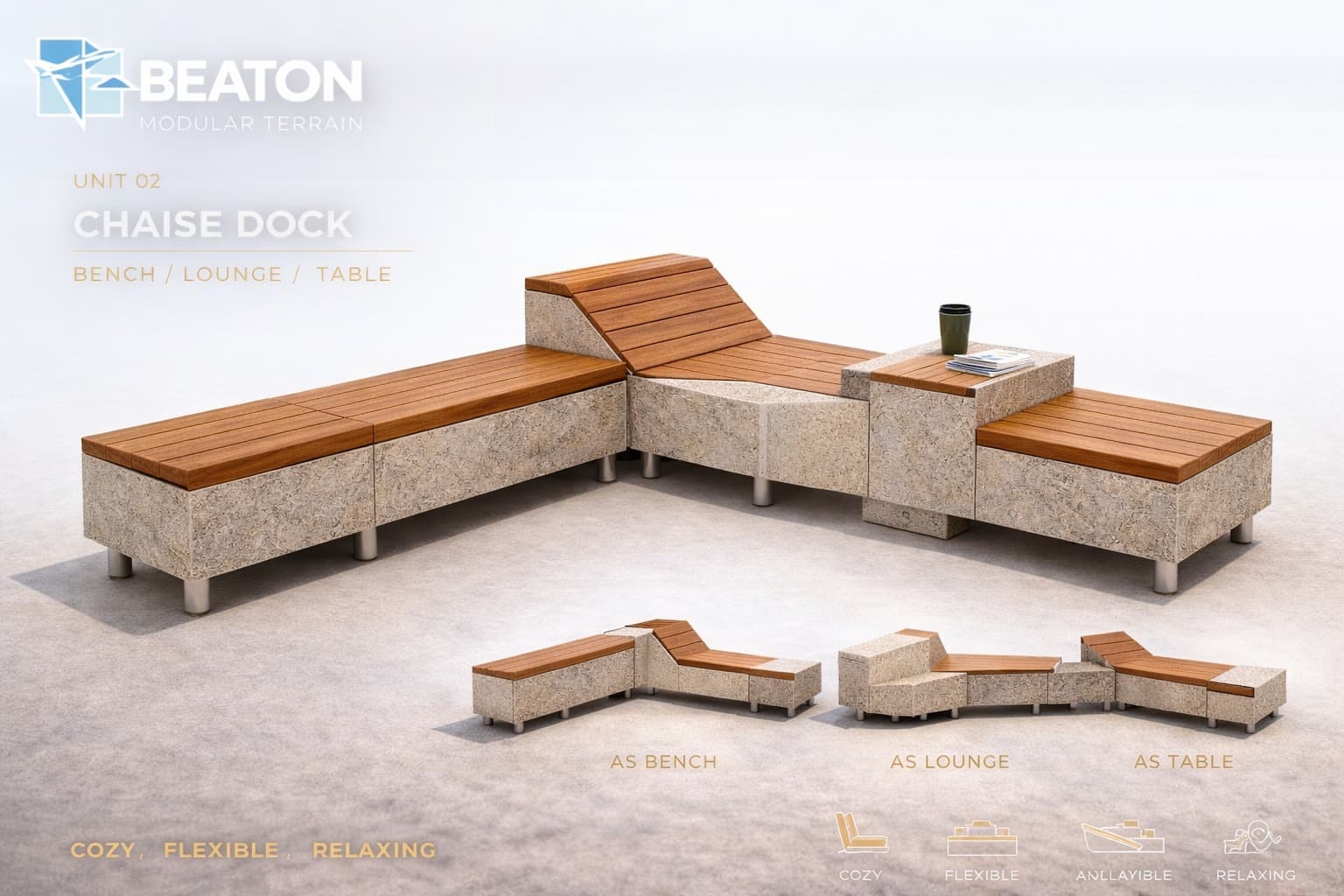

Chaise Dock
Bench / lounge / table
CHD-01
Quay Block
Riverside backless
QYB-01
Heath Edge
Single backless module
HTH-01
Crescent Link
Curved seating run
CRL-01
Parapet 47
Edge-condition module
PRP-01

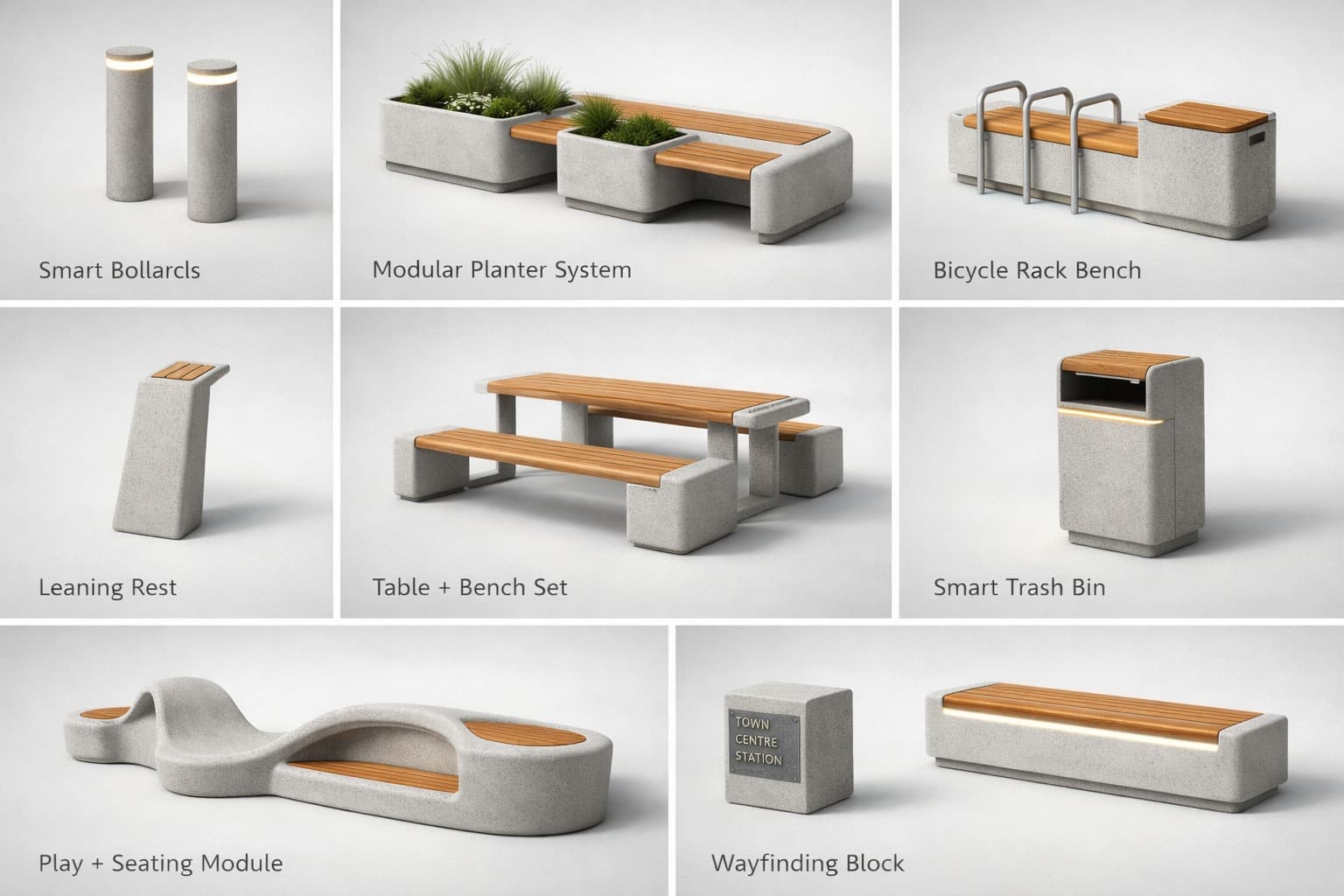

Modular Planter System
Soil depth 500–600
PLS-01
Bicycle Rack Bench
Steel insert hybrid
BRB-01
Leaning Rest
Inclusive standing aid
LRS-01
Table + Bench Set
Civic dining unit
TBS-01
Smart Trash Bin
Coordinated waste
TRB-01
Play + Seating
Mixed-use module
PLY-01

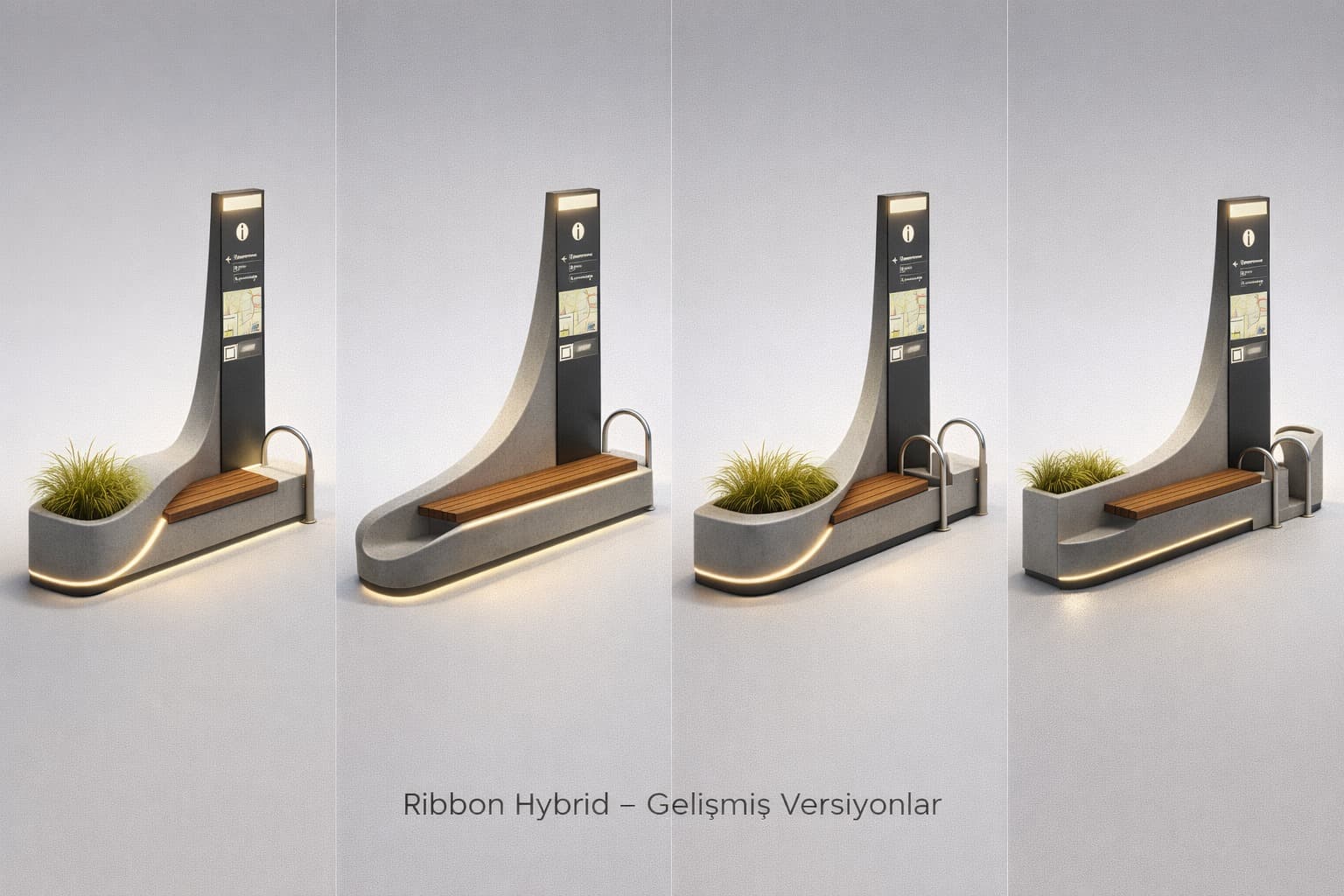

Wayfinding Block
Signage integration
WAY-01
← SCROLL HORIZONTALLY OR CONTINUE DOWN ↓

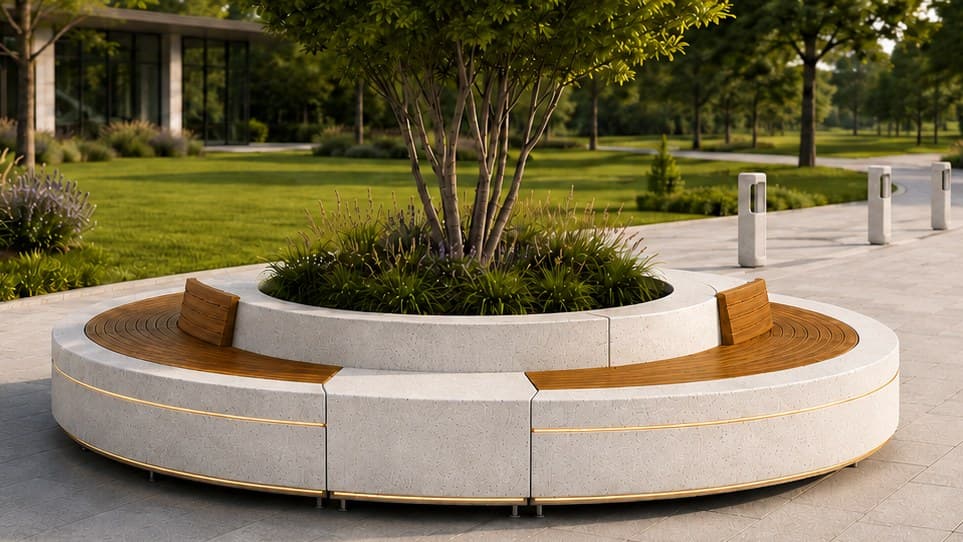

04 — Flagship Deep-Dive
The Planter+Bench system.
Designed as the flagship product for the UK public realm — a single coordinated element that combines seating, greening, spatial definition, and an optional reinforced HVM core.
TECHNICAL SPECIFICATION
- Length
- 2,000 mm
- Width
- 800 mm
- Seat height
- 450 mm
- Planter height
- 900 mm
- Soil depth
- 500–600 mm
- Material
- Precast concrete or UHPC
- Optional
- Iroko top, HVM core, drainage
CONFORMITY & GUIDANCE
- ◆BS EN 13198 — Precast concrete street furniture
- ◆BS 8300 — Inclusive design, accessible exteriors
- ◆Inclusive Mobility (DfT)
- ◆TfL Streetscape Guidance
05 — Standards
Designed to be specified — not just sold.
Beaton products are engineered with reference to the UK’s public realm guidance and material standards. Every system pack includes the conformity context that landscape architects and councils need.
BS EN 13198
Precast concrete products
Street furniture & garden — fundamental conformity for UK procurement.
BS 8300
Inclusive exterior design
Accessible seating, contrast, mobility-friendly placement.
Inclusive Mobility
DfT pedestrian guidance
Active travel, wheelchair clearance, sensory considerations.
TfL Streetscape
London public realm
Local authority pattern for benches, planters and waste.
ISO 22343
Hostile vehicle mitigation
Optional impact-tested core for HVM-ready Planter+Bench.
06 — Specifier Pack
Everything an architect needs to specify Beaton on day one.
※ Concept site — download links are placeholders.
07 — Applications

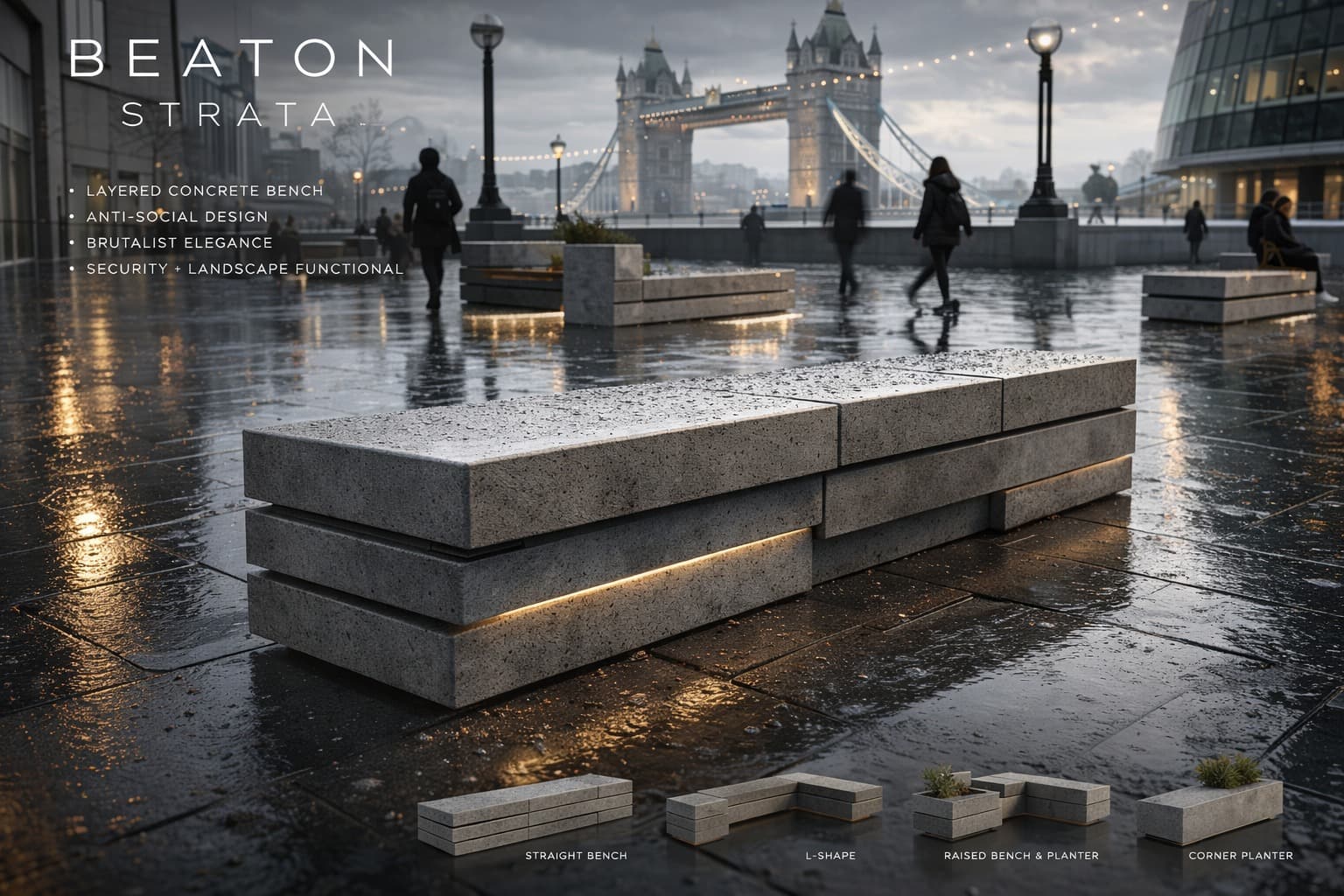

From Tower Bridge riverside to civic squares across the UK.
01 / 04

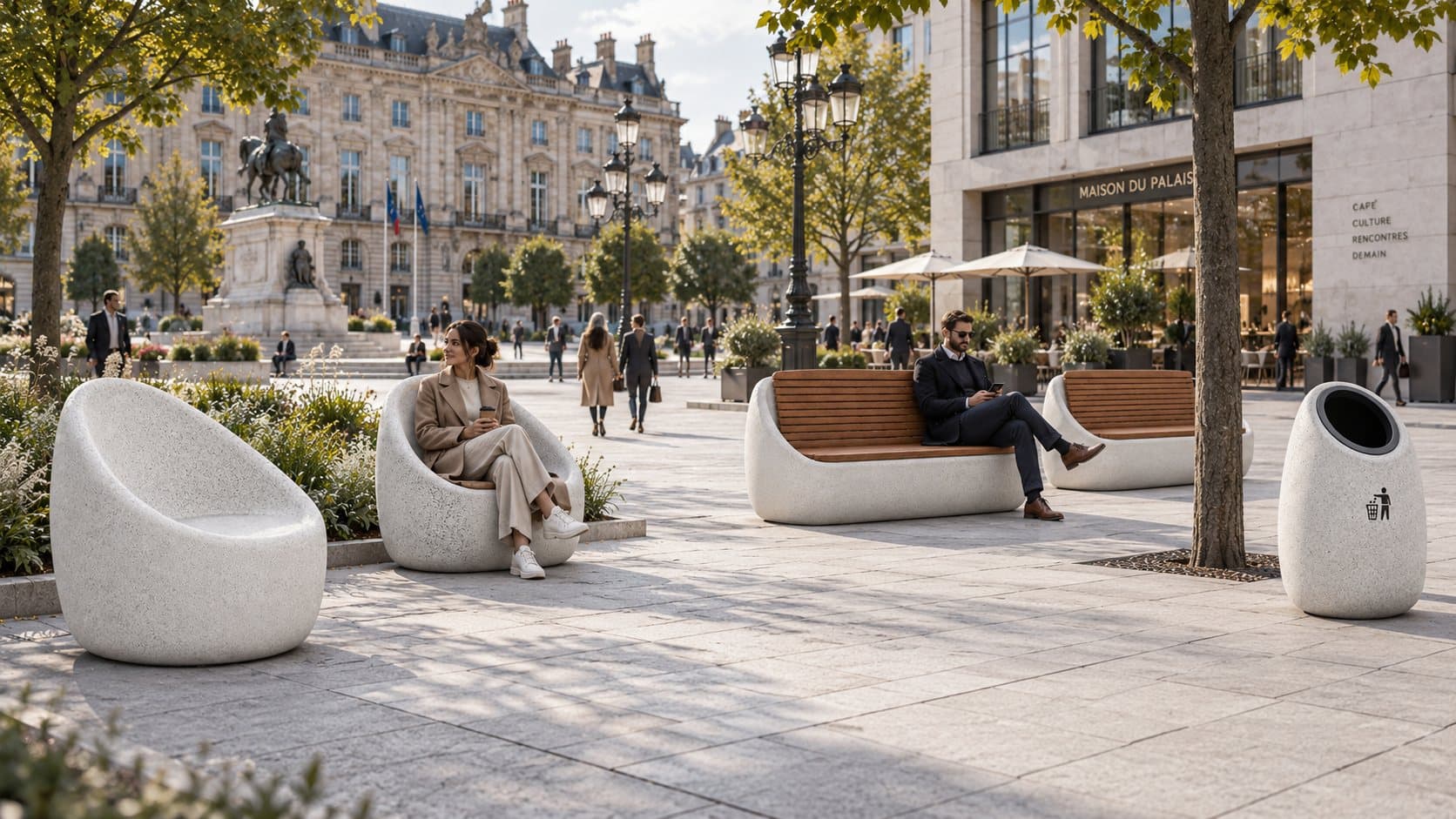

Public realm
02 / 04
Regeneration
03 / 04

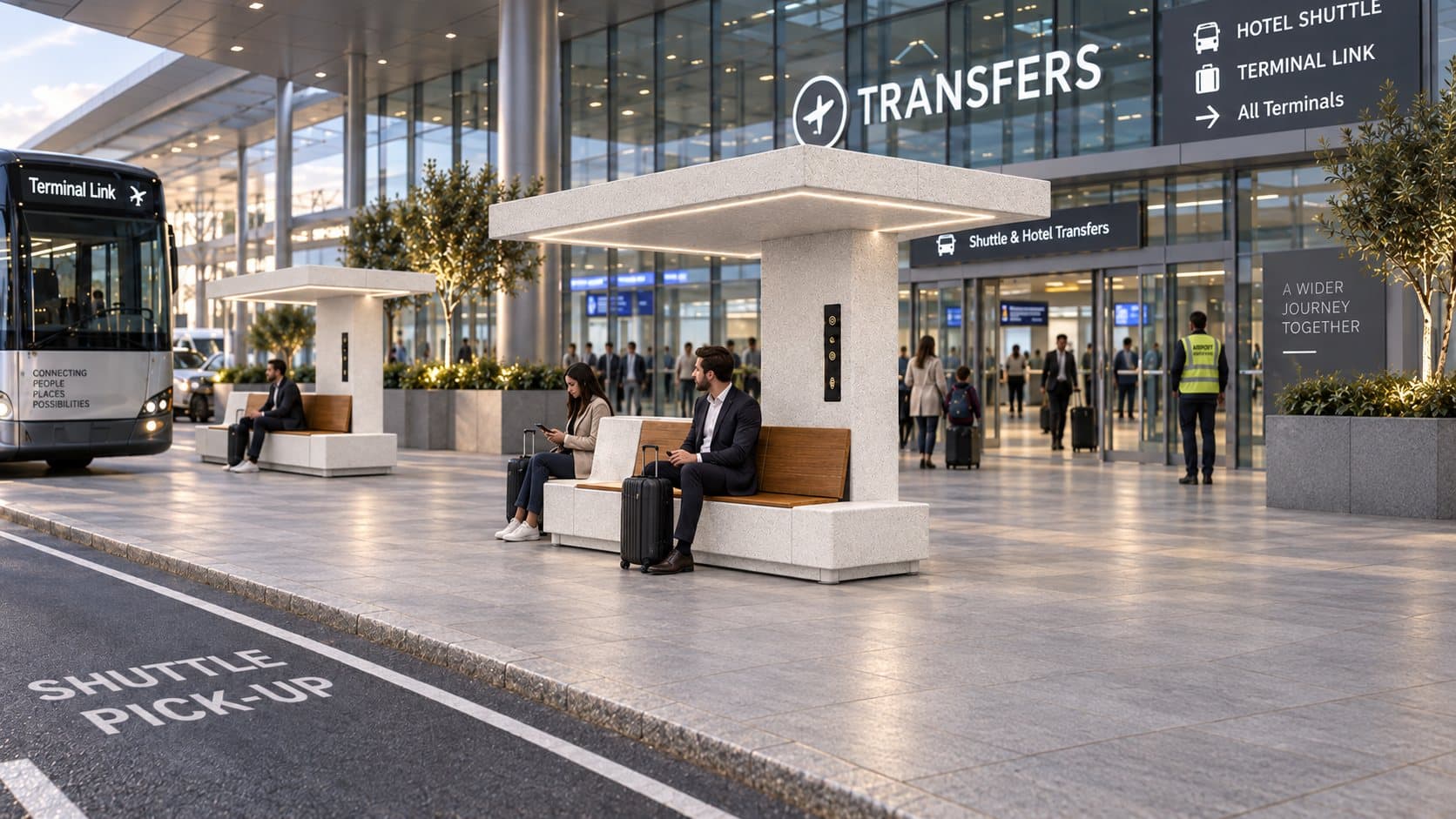

Transport hubs
04 / 04

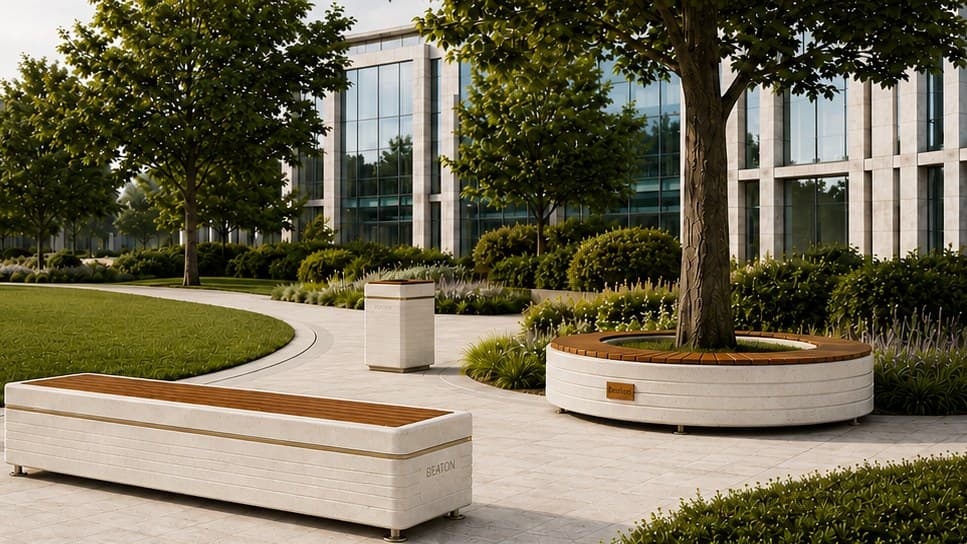

Commercial estate
08 — Specification Enquiry
Talk to our specification team.
We work directly with architects, landscape architects and urban designers from concept stage through to installation handover.
